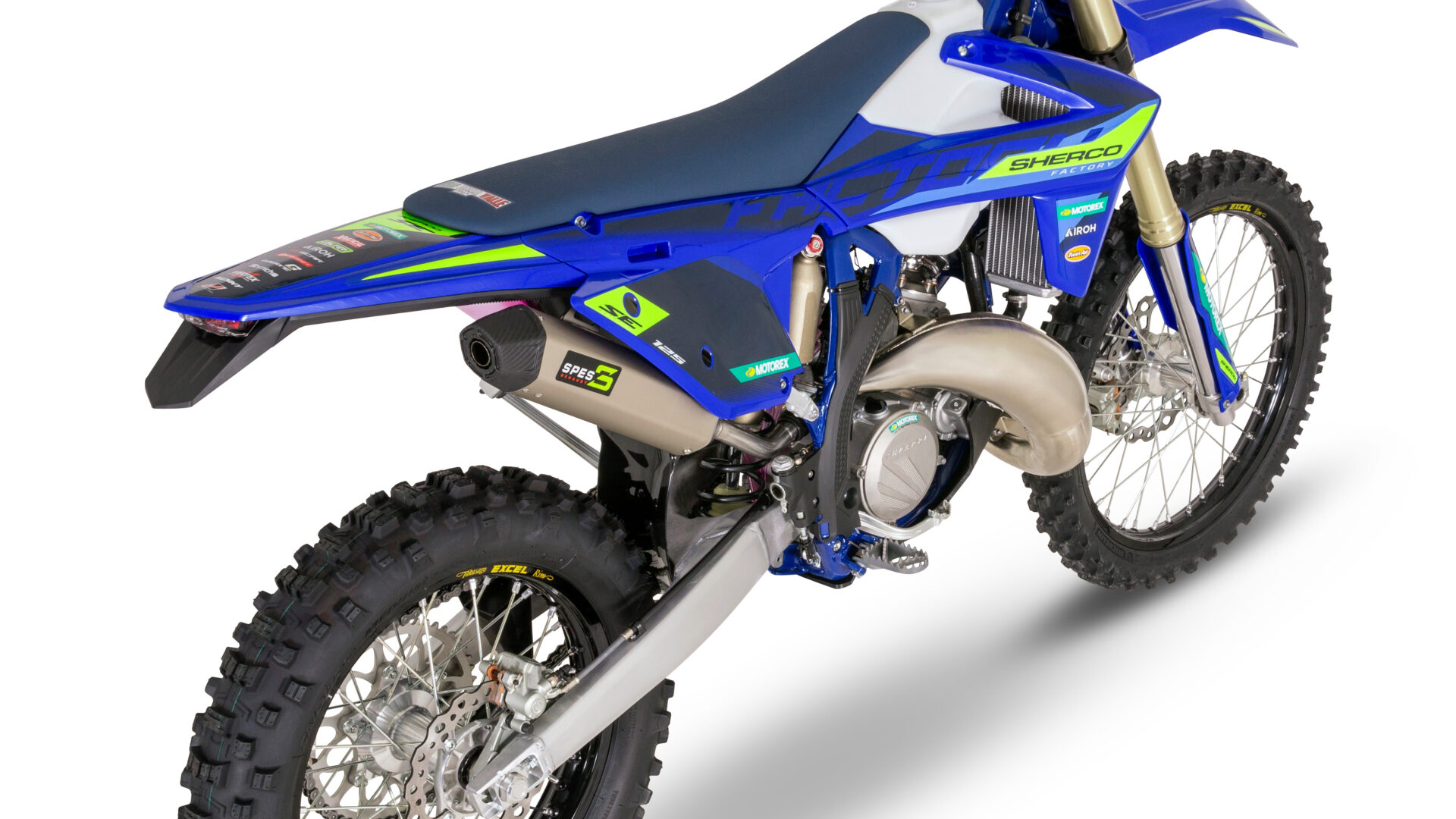

PERFORMATNTA SI DISTRACTIE MAXIMA
- New 2022 graphics kit
- New diamond pattern gray SELLE DALLA VALLE SEAT
- KYB closed cartridge suspension units
- KYB shock absorber
- AXP 6 mm skid plate

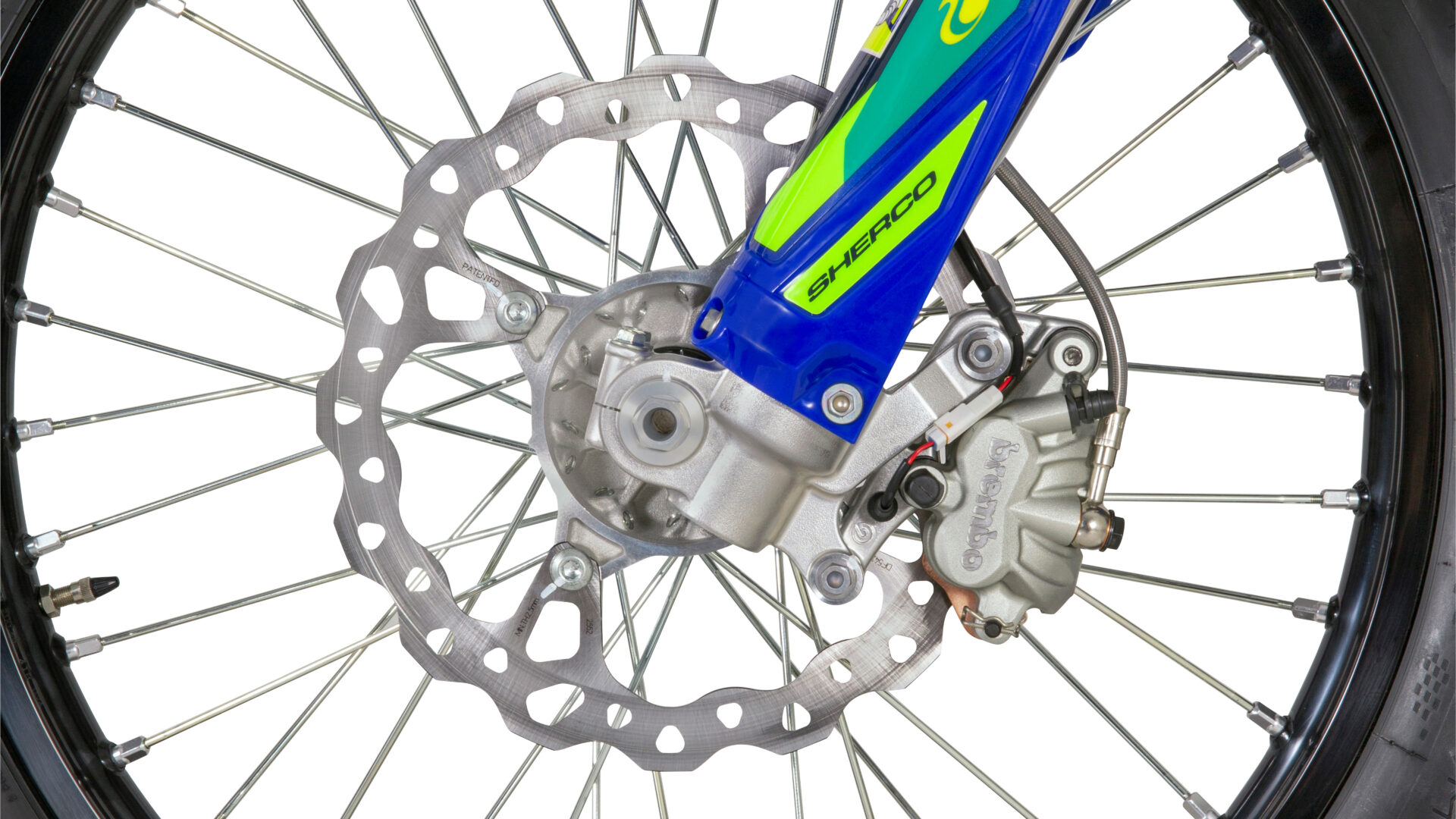

- GALFER front brake disc

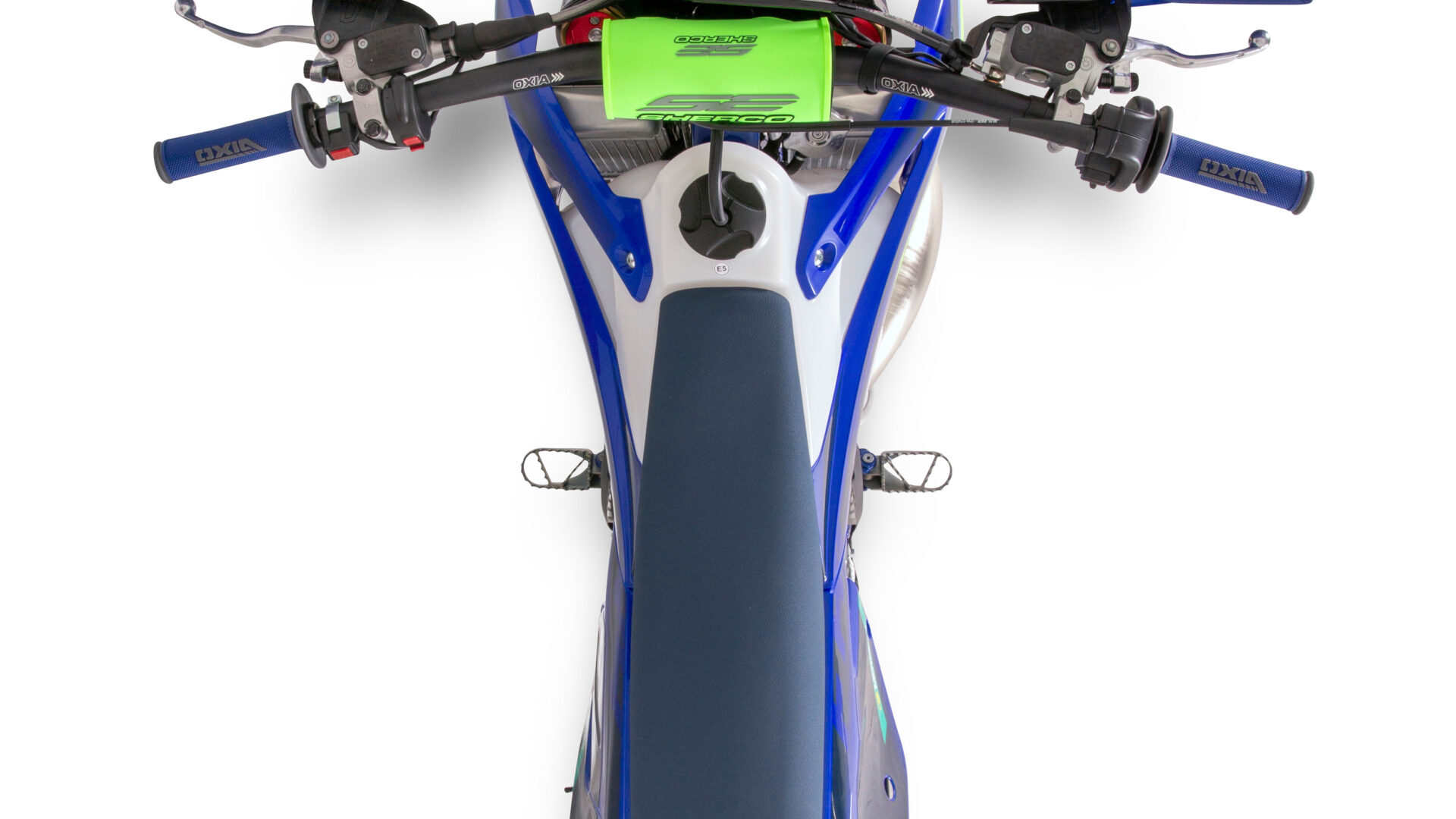

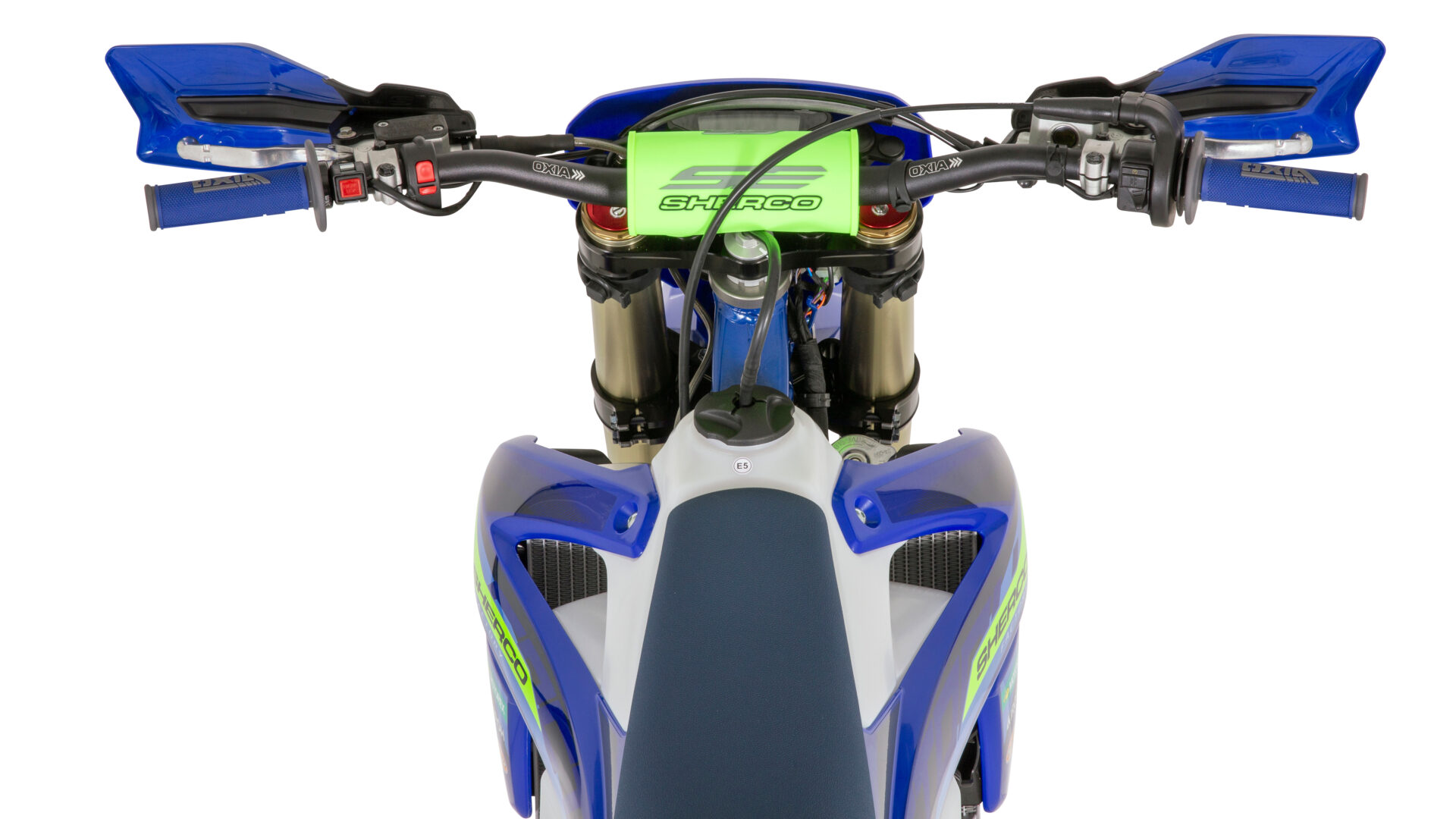

- New ergonomic NEKEN handlebar pad
- Expansion tank
- New BREMBO brake pads
- New SBS electronic exhaust system
0
1
2
3
4
5
6
7
Specificatii tehnice
Engine
2 stroke signle cylinder with electronically controlled valves and booster
Displacement
124.81cc (15.21 cu in)
Bore x stroke
54 x 54.50 mm (2.61 x 2.83 in)
Carburator
Keihin PWK 36
Battery
BS Battery 12V 140A Lithium
Lubrification
Pre-mix 2%
Fuel
Unleaded petrol 98
Cooling
Cooling Liquid system with forced circulation
Start
Electric starter
Exhaust
Chromed-steel exhaust. Aluminum silencer
Ignition system
DC – CDI ignition with digital advance 220 W Alternator
Transmission
6 speed sequential gearbox, primary gears and chain secondary
Clutch
chain secondary Clutch Hydraulic, multidisc in oil bath
Ignition
Alternator 220 W
Chassis
High strength Chrome-Molybdenum steel semi-perimeter
Tank
10,4 L capacity (2.75 US gal)

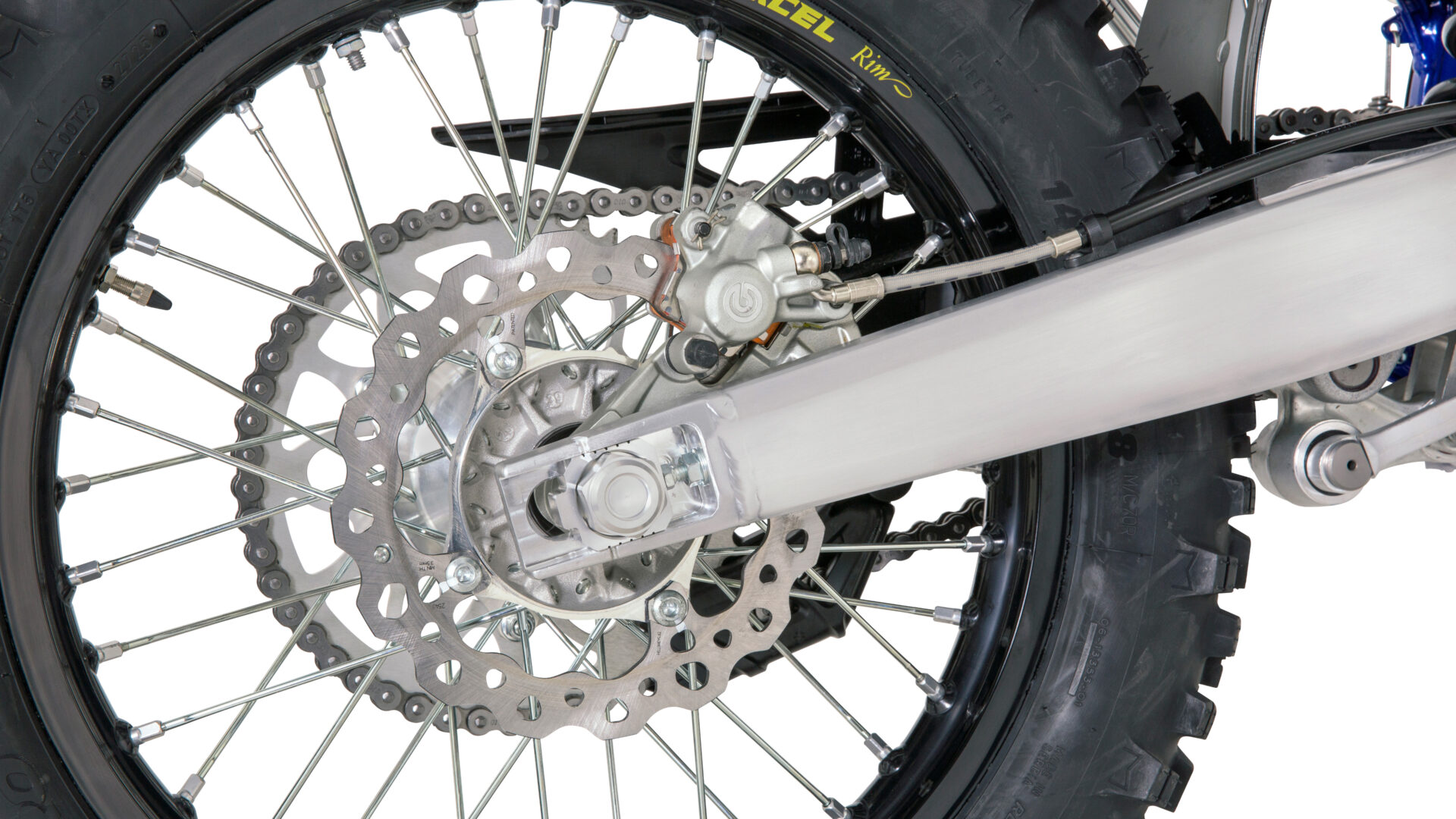

Brakes
Brembo hydraulic, 260 mm (10.24 in) front – 220 mm (8.66 in) rear
Front suspension
KYB close cartridge fork with hydraulic adjustment and specific spring calibration for each model. 48 mm tubes – 300 mm travel
Rear suspension
KYB shock absorber 50 with hydraulic adjustment and specific spring calibration for each model. 18 mm – 330 mm travel
Front wheel
1.60 x 21″ black Excel rim with Michelin Enduro Medium
Rear wheel
2.15 x 18″ black Excel rim with Michelin Enduro Medium
Wheel base
1465 mm
Ground clearance
355 mm (13.98 in)
Seat base
950 mm (37.40 in)
